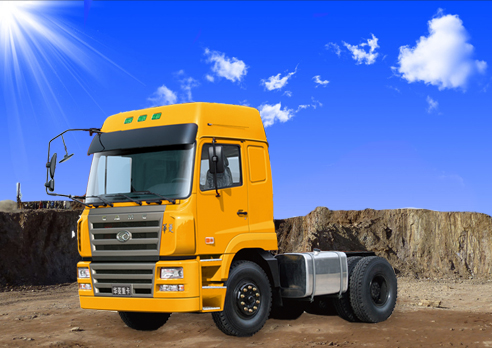

(CAMC Heavy Truck Series) :CAMC 4×2 tractor truck is a kind of semi-trailer truck for transporting heavy goods. It uses towing engine and an additional semi-trailer to carry or transport heavy goods like container, cars, stones, etc. This truck tractor head is usually used to transport a large number of goods in the workshop, such as transporting goods from automobile manufacturing warehouse to the assembly line. Our 4×2 tractor trucks are also applied for transporting airport baggage.
Features
1.This truck tractor head has a comfortable and spacious cab.
2.It is characterized by compact structure, elegant line, wide field of vision, large door opening angle and large cab tilting angle.
3.CAMC 4×2-1 tractor truck enjoys the advantages of light weight, high load capacity, strong power, high reliability, strong climbing ability and high speed.
4.This type of truck tractor head is easy and convenient to maintain.
|
Product Name
|
Tractor Truck
|
|
Product Model
|
HN4182B31C4M4
|
|
Place of Origin
|
Maan shan, Anhui, China
|
|
Kerb mass
|
7.5ton
|
|
Rated Payload
|
60ton
|
|
Drive Type
|
Left-Hand(optional RHD)
|
|
Drive Model
|
4x2
|
|
Vehicle Body Color
|
Yellow(optional)
|
|
Overall Dimension (LxWxH)mm
|
6170x2500x3100
|
|
Engine
|
Brand
|
WEICHAI
|
|
Model
|
CM6D18.345 30
|
|
Max. Power (kw/r/min)
|
309/2200
|
|
Max. T Qrgue(Nm/r/min)
|
1750/1600
|
|
No. of cylinder
|
6
|
|
Bore x Stroke(mm)
|
126 x155
|
|
Displacement
|
12000ml
|
|
Control Type
|
Mechanical
|
|
Air Cleaner
|
Dry Paper Element
|
|
Emission Standard
|
Euro III
|
|
Clutch
|
Type
|
Hydraulic control with air assisted
|
|
Plate diameter
|
dry single plate with diaphragm
outside diameter: 430 mm
|
|
Transmission
|
Brand
|
FAST GEAR
|
|
Model
|
12SDC1851
|
|
Type
|
Mechanical
|
|
The Number of Axles
|
2
|
|
Rear Axle(drive axle)-Load
|
16000kg
|
|
Front Axle-Load
|
7500kg
|
|
Cabin type
|
Classic flat-roof (optional EF,CH,EH)
|
|
Cabin
|
With A/C, Radio, MP3,Bunk
|
|
Brake System
|
Service
|
Full air brake dual ciruit
|
|
Parking
|
Spring actugtor at rear wheels
|
|
Auxiliary
|
Exhaust break
|
|
Steering System
|
recirculation ball with integral power
assisted by oil
|
|
Wheelbase (mm)
|
3400
|
|
Wheel/Tire
|
Type
|
Bias/Radial tube/Radial tubeless
|
|
Model(optional)
|
11.00-20/11.00R20/11R22.5
12.00-20/12.00R20/12R22.5
|
|
Tire number
|
6+1
|
|
Fuel Tank
|
Volume(L)
|
350
|
|
The working platform
|
With
|
|
Diversion cover
|
Optional
|
|
Front overhang/Rear overhang(mm)
|
1370/1020
|
|
Approach/Departure Angle(°)
|
24/23
|
|
No. of steel spring(front/rear)
|
9/9+6
|
|
Max. Speed (km/h)
|
90
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations.
