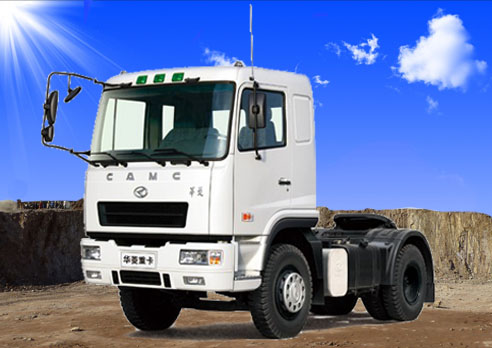

(CAMC Heavy Truck Series) CAMC 4x2 Narrow-body tractor truck:
|
Product Name
|
Tractor Truck
|
|
Product Model
|
HN4182B31C4M4
|
|
Place of Origin
|
Maan shan, Anhui, China
|
|
Kerb mass
|
63500kg
|
|
Rated Payload
|
35145kgn
|
|
Drive Type
|
Left-Hand
|
|
Drive Model
|
4x2
|
|
Vehicle Body Color
|
White(optional)
|
|
Overall Dimension (LxWxH)mm
|
5790x2452x2965(3560 for High-roof cabin)
|
|
Engine
|
Brand
|
CUMMINS
|
|
Model
|
CM6D28.380 30
|
|
Max. Power (kw/r/min)
|
254/2200
|
|
Displacement
|
8900ml
|
|
Emission Standard
|
Euro III
|
|
Clutch
|
Model
|
Φ430 diaphragm spring
|
|
Transmission
|
Brand
|
FAST GEAR
|
|
Model
|
12SDC1851
|
|
Type
|
twin countershaft; all synchronizer
|
|
The Number of Axles
|
2
|
|
Rear Axle Model
|
HL457
|
|
Front Axle-Load
|
6500kg
|
|
Cabin type
|
Narrow-body flat-roof (optional High-roof cabin)
|
|
Cabin
|
With A/C, Radio, Bunk
|
|
Brake System
|
Full air brake with exhaust brake (optional ABS)
|
|
Steering System
|
HITACHI
|
|
Wheelbase (mm)
|
3400
|
|
Wheel/Tire
|
Type
|
Bias/Radial tube/Radial tubeless
|
|
Model(optional)
|
10.00-20/11.00-20/11R22.5
|
|
Tire number
|
6+1
|
|
Fuel Tank
|
Volume(L)
|
320 (optional 380L)
|
|
The fifth wheel (Saddle)
|
JOST 50# (2 inches)/(optional 90#; 3.5inches)
|
|
The working platform
|
With
|
|
Diversion cover
|
Optional
|
|
Front overhang/Rear overhang(mm)
|
1370/1020
|
|
Approach/Departure Angle(°)
|
24/23
|
|
No. of steel spring(front/rear)
|
9/9+6
|
|
Max. Speed (km/h)
|
90
|
Remarks: Due to improvements made to the product, data herein is subject to change without notice.Different outfits are provided for the different configurations of the motor vehicles.Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.CAMC reserves the rights to make final explanations.
