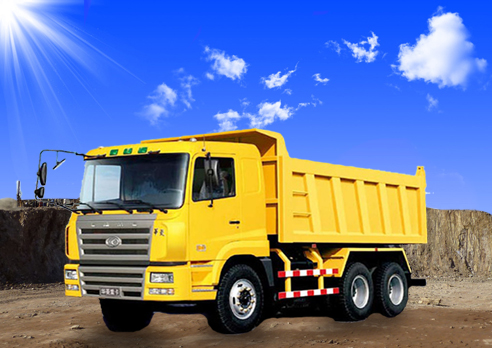

(CAMC Heavy Truck Series) Features of 6×4 Self-Unloading Truck
1.6×4 dump truck features compact structure, elegant appearance and wide field of vision. It is also very comfortable and spacious.
2.Matched with Dongfeng Cummins engine, this tipper truck enjoys the advantages of strong carrying capacity, strong power, high reliability, strong climbing ability and high speed.
3.Our 6×4 dump trucks are designed with high safety, which guarantees good protection of drivers and passengers.
4.With high efficient and oil-saving strong driving force, CAMC 6×4 tipper truck is simple and comfortable to operate.
Main Parameters:
|
|
Dump Truck
|
|
Product Model
|
HN3250B34C6M4
|
|
Place of Origin
|
Maan shan, Anhui, China
|
|
Kerb mass
|
12.3ton
|
|
Rated Payload
|
20-40ton
|
|
Drive Type
|
Left-Hand(optional RHD)
|
|
Drive Model
|
6x4
|
|
Vehicle Body Color
|
Yellow(optional)
|
|
Overall Dimension (LxWxH)mm
|
7840x2495x3240
|
|
Body interior (mm)
|
5200×2300×1200
|
|
Engine
|
Brand
|
Dongfeng Cummins
|
|
Model
|
WP10.336
|
|
Max. Power (kw/r/min)
|
250/2200
|
|
Max. T Qrgue(Nm/r/min)
|
1350/1400
|
|
No. of cylinder
|
6
|
|
Bore x Stroke(mm)
|
114x145
|
|
Displacement
|
8900ml
|
|
Control Type
|
Mechanical
|
|
Air Cleaner
|
Dry Paper Element
|
|
Emission Standard
|
Euro III
|
|
Clutch
|
Type
|
Hydraulic control with air assisted
|
|
Plate diameter
|
dry single plate with diaphragm
outside diameter: 430 mm
|
|
Transmission
|
Brand
|
FAST GEAR
|
|
Model
|
8SDJ1981
|
|
Type
|
Mechanical
|
|
The Number of Axles
|
3
|
|
Rear Axle(drive axle)-Load
|
16000kgx2
|
|
Front Axle-Load
|
7500kg
|
|
Cabin type
|
Classic flat-roof (optional EF,CH,EH)
|
|
Cabin
|
With A/C, Radio, MP3,Bunk
|
|
Brake System
|
Service
|
Full air brake dual ciruit
|
|
Parking
|
Spring actugtor at rear wheels
|
|
Auxiliary
|
Exhaust break
|
|
Steering System
|
recirculation ball with integral power
assisted by oil
|
|
Wheelbase (mm)
|
3200+1350
|
|
Wheel/Tire
|
Type
|
Bias/Radial tube/Radial tubeless
|
|
Model(optional)
|
11.00-20/11.00R20/11R22.5
12.00-20/12.00R20/12R22.5
|
|
Tire number
|
10+1
|
|
Fuel Tank
|
Volume(L)
|
320
|
|
Body Steel Thickness
|
Bottom 8mm/Side 5mm
|
|
Body Lifting System
|
Hydraulic Central Lift
|
|
Front overhang/Rear overhang(mm)
|
1370/1560
|
|
Approach/Departure Angle(°)
|
24/25
|
|
No. of steel spring(front/rear)
|
9/12
|
|
Max. Speed (km/h)
|
75
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations.
